• Hanging-Ratios

    When netting is attached to lines, it should be longer than the lines so as to have a proper looseness.
    This excess length is expressed as a percentage of the stretched netting. This is the hanging ratio.
    The formula for figuring the hanging ratio is: stretched length of netting minus length of netting, divided by length of netting.
    Ratio % = (str length of netting less rope length)/str length of netting)
    The shape of mesh is greatly influenced by the hanging ratio.
    Multiply the stretch mesh size times the number of mesh deep times the % height to get the total height of net.
    Multiply the stretch mesh size times the number of mesh long times the % length to get the total length of net.

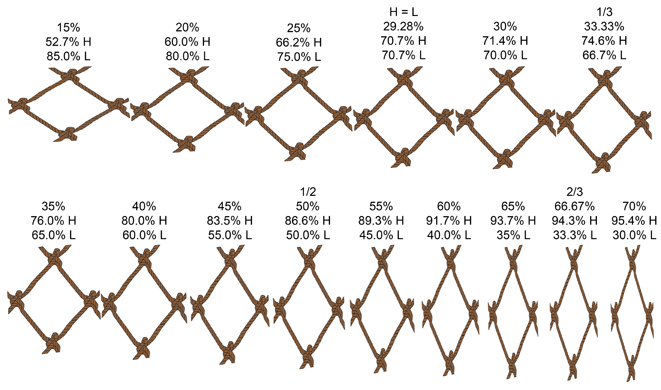

    The following shows the heights and lengths of the mesh for different hanging ratios.

    Mesh

    For sports nets such as batting cages and backstops, it is best if the mesh is close to the same height and length with a ratio of 29.3%.
    If possible hanging ratio should be between 25% and 35%.
    Seines are normally hung as close as possible to 1/3 which is a hanging ratio of 33.3%. If possible hanging ratio should be between 20% and 40%.
    Gilling type nets are normally hung between 1/2 and 2/3 which is a hanging ratio of 50% to 66.7%. Generally more is better, but over 70% will start to become too dark in the water.

  • Hand Rail Nets with Mesh on the Diamond

    Metropolis Resort Handrail Net

    All these nets are
    Proudly made in the USA

    We can build virtually any net you need to your specifications.

    Custom Installation is available upon request. Please call for pricing.

    See Photo Gallery Water and Theme Parks for additional pictures.

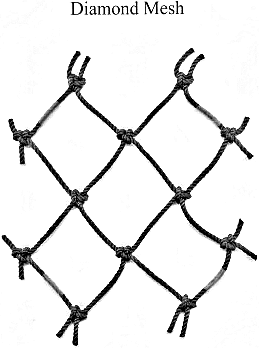

    Nets shown here are all on the diamond mesh.

    We can also make them on the square mesh. We can do what you need. Give us a call.

    Nets available with or without rope boder.

    To order these, look here.



    Impact 3D Art & Design
    Impact 3D Art & Design
    Boat ramp stairway handrail net
    treehouse walkway handrail net
    decorative rope handrail net with floats
    Walk way handrail net
    decorative grill restaurant handrail net
    Bridge handrail net
    Handrail net at Montana house
    Handrail net at Montana house
  • Hand Rail Nets

    •  Proudly Made in the USAHand rail netting is available in white, black, and brown.
    • Black, or Rustic Brown Nets: Additional 15%, $25.00 minimum. We will add to invoice.
    • Use Stock Number TREAT-L for Rustic Brown, stock number TREAT-P for Black. Use quantity of 1, we will adjust price accordingly.


    Tip: Install 2" to 4" off floor to allow leaves and trash to blow under.

    #36 Polyester - 350 lb. test - 2" Square Mesh - Netting Only

    Length36 Inches High42 Inches High48 Inches High
    Net No.PriceNet No.PriceNet No.Price
    10 Ft.S-HR363610$ 40.15S-HR364210$ 42.16S-HR364810$ 44.17
    20 Ft.S-HR363620$ 63.05S-HR364220$ 67.07S-HR364820$ 71.09
    30 Ft.S-HR363630$ 85.95S-HR364230$ 91.88S-HR364830$ 98.01
    40 Ft.S-HR363640$ 108.85S-HR364240$ 116.98S-HR364840$ 124.93
    50 Ft.S-HR363650$ 131.75S-HR364250$ 141.80S-HR364850$ 151.85
    60 Ft.S-HR363660$ 154.64S-HR364260$ 166.71S-HR364860$ 178.77
    70 Ft.S-HR363670$ 177.54S-HR364270$ 191.62S-HR364870$ 205.69
    80 Ft.S-HR363680$ 200.44S-HR364280$ 216.53S-HR364880$ 232.61
    90 Ft.S-HR363690$ 223.34S-HR364290$ 241.44S-HR364890$ 259.53
    100 Ft.S-HR3636100$ 246.24S-HR3642100$ 266.35S-HR3648100$ 286.45

    #60 Polyester - 560 lb. test - 2" Square Mesh - Netting Only

    Length36 Inches High42 Inches High48 Inches High
    Net No.PriceNet No.PriceNet No.Price
    10 Ft.S-HR603610$ 54.77S-HR604210$ 58.86S-HR604810$ 62.94
    20 Ft.S-HR603620$ 92.29S-HR604220$ 100.46S-HR604820$ 108.63
    30 Ft.S-HR603630$ 129.81S-HR604230$ 142.07S-HR604830$ 154.32
    40 Ft.S-HR603640$ 167.33S-HR604240$ 183.67S-HR604840$ 200.01
    50 Ft.S-HR603650$ 204.84S-HR604250$ 225.28S-HR604850$ 245.71
    60 Ft.S-HR603660$ 242.36S-HR604260$ 266.88S-HR604860$ 291.40
    70 Ft.S-HR603670$ 279.88S-HR604270$ 308.49S-HR604870$ 337.09
    80 Ft.S-HR603680$ 317.40S-HR604280$ 350.09S-HR604880$ 382.78
    90 Ft.S-HR603690$ 354.92S-HR604290$ 391.70S-HR604890$ 428.47
    100 Ft.S-HR6036100$ 392.44S-HR6042100$ 433.30S-HR6048100$ 474.16

    #96 Polyester 900 lb. test 2" Square Mesh - Netting Only

    Length36 Inches High42 Inches High48 Inches High
    Net No.PriceNet No.PriceNet No.Price
    10 Ft.S-HR963610$ 80.03S-HR964210$ 87.79S-HR964810$ 95.54
    20 Ft.S-HR963620$ 142.82S-HR964220$ 158.33S-HR964820$ 173.84
    30 Ft.S-HR963630$ 205.60S-HR964230$ 228.87S-HR964830$ 252.13
    40 Ft.S-HR963640$ 268.39S-HR964240$ 299.41S-HR964840$ 330.43
    50 Ft.S-HR963650$ 331.17S-HR964250$ 369.95S-HR964850$ 408.72
    60 Ft.S-HR963660$ 393.96S-HR964260$ 440.49S-HR964860$ 487.02
    70 Ft.S-HR963670$ 456.74S-HR964270$ 511.03S-HR964870$ 565.31
    80 Ft.S-HR963680$ 519.52S-HR964280$ 581.57S-HR964880$ 643.61
    90 Ft.S-HR963690$ 582.31S-HR964290$ 652.11S-HR964890$ 721.90
    100 Ft.S-HR9636100$ 645.09S-HR9642100$ 722.64S-HR9648100$ 800.20

    Optional ropes attached to nets.

    Price per running foot.

    DiameterDescriptionLb. TestItem No.Price per foot
    3/4"Manila4800S-HRM75$ 1.52
    1"Manila8100S-HRM10$ 2.00
    3/4"Polyester11000S-HRP75$ 2.16
    1"Polyester19000S-HRP10$ 3.21
    1 1/4"Polyester29000S-HRP12$ 4.52
    1 1/2"Polyester42000S-HRP15$ 5.81

    Note: if you want top and bottom rope, you'll need rope twice the length of the net.

    End Ropes for hand rail nets: Stock Number S-HREND - Price $15.00 for each end.

    Example: If a net 30' long cost $200.00 and the rope you want cost $4.00 per foot.
    Total cost of net with top and bottom rope would be $440.00.
    (60 x $4.00 = $240.00 plus net cost of $200.00)

    Same net with rope in each end costs $230.00

    Call us for other options.



    Lilly Pad Nets

    Lilly Pad Net 2 400

    We custom make Lilly Pad Nets, any size you need.

    The one above is 4’ X 28’ with 12” mesh, made with 3/4” polyester rope.

  • Diamond Mesh Netting In Bulk

    Proudly Made in the USA Diamond Netting

    For Baseball/Softball, Golf Nets, Hand Rail Nets, Water and Amusement Parks, and more other uses.
    Other twine and other mesh sizes available.
    Email or phone with specifications for price.

    Note: Nylon price is for Black Netting. White Nylon is $ 1.00 per pound less.

    #60 and #96 Hand Rail Netting also available in rustic brown -- add 15%.

    See Bulk Netting on Diamond for other sizes of bulk netting on diamond mesh.
    See Net Life for life expectancy of different type and size materials.

    Price Per Pound
    Type of Sports NetCommon UseColorTwine SizeSquare
    Mesh
    Number of
    Mesh Per
    Square Ft.
    Approx.
    Sq. Ft.
    Per Lb.
    Cord TestHeights
    Available
    Stock NumberUnder
    50
    50
    to
    99
    100
    or more
    GolfScreen NetsBlack#9 Nylon1"9 X 85584 lb.10'N9B-20090$ 12.99$ 12.49$ 11.99
    GolfDriving NetsBlack#21 Nylon7/8"10 X 1015200 lb.7'N21B-17070$ 11.00$ 10.50$ 10.00
    GolfDriving NetsBlack#21 Nylon7/8"10 X 1015200 lb.10'N21B-17100$ 11.00$ 10.50$ 10.00
    GolfDriving NetsBlack#21 Nylon7/8"10 X 1015200 lb.17'N21B-17170$ 11.00$ 10.50$ 10.00
    GolfDriving NetsBlack#21 Nylon7/8"10 X 1015200 lb.20'N21B-17200$ 11.00$ 10.50$ 10.00
    GolfDriving NetsBlack#21 Nylon7/8"10 X 1015200 lb.27'N21B-17270$ 11.00$ 10.50$ 10.00
    BB & SBPersonalBlack#15 Nylon1 3/4"5 X 572120 lb.10'N15B-35049$ 11.00$ 10.50$ 10.00
    BB & SBPersonalBlack#15 Nylon1 3/4"5 X 572120 lb.12'N15B-35059$ 11.00$ 10.50$ 10.00
    BB & SBPersonalBlack#15 Nylon1 3/4"5 X 572120 lb.14'N15B-35069$ 11.00$ 10.50$ 10.00
    BB & SBPersonalBlack#15 Nylon1 3/4"5 X 572120 lb.16'N15B-35079$ 11.00$ 10.50$ 10.00
    BB & SBPersonalBlack#15 Nylon1 3/4"5 X 572120 lb.20',N15B-35099$ 11.00$ 10.50$ 10.00
    BB & SBPersonalBlack#15 Nylon1 3/4"5 X 572120 lb.30'N15B-35149$ 11.00$ 10.50$ 10.00
    BB & SBLeague, HSBlack#21 Nylon1 7/8"4.5 X 4.542200 lb.10'N21B-37045$ 11.00$ 10.50$ 10.00
    BB & SBLeague, HSBlack#21 Nylon1 7/8"4.5 X 4.542200 lb.12'N21B-37054$ 11.00$ 10.50$ 10.00
    BB & SBLeague, HSBlack#21 Nylon1 7/8"4.5 X 4.542200 lb.14'N21B-37063$ 11.00$ 10.50$ 10.00
    BB & SBLeague, HSBlack#21 Nylon1 7/8"4.5 X 4.542200 lb.16'N21B-37072$ 11.00$ 10.50$ 10.00
    BB & SBLeague, HSBlack#21 Nylon1 7/8"4.5 X 4.542200 lb.20'N21B-37090$ 11.00$ 10.50$ 10.00
    BB & SBLeague, HSBlack#21 Nylon1 7/8"4.5 X 4.542200 lb.60'N21B-37270$ 11.00$ 10.50$ 10.00
    BB & SB
    Hand Rail
    League, HS,
    College,
    Residential HR
    Black#36 Nylon1 7/8"4.5 X 4.526350 lb.10'N36B-37045$ 11.00$ 10.50$ 10.00
    BB & SB
    Hand Rail
    League, HS,
    College,
    Residential HR
    Black#36 Nylon1 7/8"4.5 X 4.526350 lb.12'N36B-37054$ 11.00$ 10.50$ 10.00
    BB & SB
    Hand Rail
    League, HS,
    College,
    Residential HR
    Black#36 Nylon1 7/8"4.5 X 4.526350 lb.14'N36B-37063$ 11.00$ 10.50$ 10.00
    BB & SB
    Hand Rail
    League, HS,
    College,
    Residential HR
    Black#36 Nylon1 7/8"4.5 X 4.526350 lb.16'N36B-37072$ 11.00$ 10.50$ 10.00
    BB & SB
    Hand Rail
    League, HS,
    College,
    Residential HR
    Black#36 Nylon1 7/8"4.5 X 4.526350 lb.20'N36B-37090$ 11.00$ 10.50$ 10.00
    BB & SB
    Hand Rail
    League, HS,
    College,
    Residential HR
    Black#36 Nylon1 7/8"4.5 X 4.526350 lb.51'N36B-37230$ 11.00$ 10.50$ 10.00
    BB & SB
    Hand Rail
    League, HS,
    College,
    Residential HR
    Black#42 Nylon1 7/8"4.5 X 4.523370 lb.35'N42B-37160$ 11.00$ 10.50$ 10.00
    BB & SB
    Hand Rail
    College,
    Commercial, Pro,
    Commercial HR
    Black#60 Nylon1 7/8"4.5 X 4.513560 lb.35'N60B-37160$ 11.00$ 10.50$ 10.00
    BB & SB
    Hand Rail
    College,
    Commercial, Pro,
    Commercial HR
    Black#96 Nylon1 7/8"4.5 X 4.56.4900 lb.22'N96B-37100$ 12.00$ 11.50$ 11.00
    BB & SB
    Hand Rail
    College,
    Commercial, Pro,
    Commercial HR
    Black#84 Braid Nylon1 7/8"4.5 X 4.511650 lb.22'N84B-B37100$ 11.00$ 10.50$ 10.00
    Hand RailResidential,
    Commercial
    White#60 Polyester2"4.2 X 4.215.3560 lb.24'N60P-40100$ 11.00$ 10.50$ 10.00
    Hand RailResidential,
    Commercial
    White#96 Polyester2"4.2 X 4.28.1900 lb.24'N96P-40100$ 13.00$ 12.50$ 12.00
