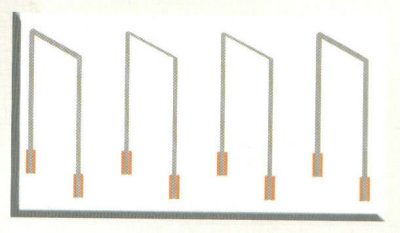

Our frames are made with high quality galvanized pipe. Each frame is made up of two end sections and then enough center sections to support the net. The end sections are made of 1 7/8" uprights with an additional 8' long 1 5/8" support that fits inside the 1 7/8" upright, a 1 5/8" pipe is used as a cross member. The center sections are made of 1 5/8" uprights with a 1 3/8" cross member.
Each section comes with two PVC sleeves that are concreted into the ground, and the frame simply slips into the sleeves. No tools are needed and no cables are used. Use the chart below to determine the frame you need. These frames are for cages up to 12' high and 14' wide. For larger cages see options at bottom.
| Stock Number | Price | Number of Sections | Length Cage Sections will Support |
| Personal Use (120 lb. test) | School League (200 lb. test) | College, Commercial (350 lb. test) |
| S-F2 | $ 625.00 | 2 | 20' | 20' | ----- |
| S-F3 | $ 805.00 | 3 | 30' - 40' - 50' | 30' - 40' | 20' - 30' |
| S-F4 | $ 985.00 | 4 | 60' - 70' | 50' - 60' | 40' |
| S-F5 | $ 1165.00 | 5 | 80' | 70' - 80' | 50' - 60' |
| S-F6 | $ 1345.00 | 6 | ------ | ----- | 70' - 80' |
Frame Options
S-FO1 - 2' extensions for 14' high cage - $10.00 per section
S-FO2 - 4' extensions for 16' high cage - $17.50 per section
Frames for cages wider than 14' call for price.
